3.2 Unpacking the projector

What has to be done

The projector is delivered in a cardboard box. Furthermore, to provide protection during transportation, the projector is surrounded with polymeric foam. Once the projector has arrived at the installation site, it needs to be removed from the box in a safe manner, without damaging the projector.

Required tools

Cutter knife

How to unpack
  1. Open the cardboard box.

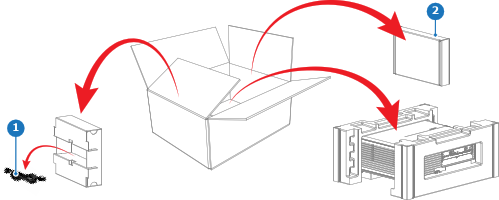

  2. Remove the two small boxes placed on side of the projector.

    One box contains the power cord[2] (reference 1 Image 3–4) and the other box contains manuals, remote control etc. (reference 2 Image 3–4).

  3. Lift the projector and surrounding foam out of the cardboard box.

    Image 3–4

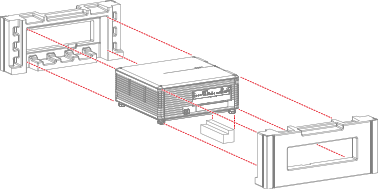

  4. Remove the surrounding foam from the projector.

    Image 3–5
  5. Place the projector on solid and stable surface, then remove the protected plastic bag.
Tip: Save the original shipping cardboard box and packing material. They will be necessary if you ever have to ship your projector. For maximum protection, repack your projector as it was originally packed at the factory.
Note: A plastic lens holder cover is placed into the lens opening of the projector. It's recommended to reuse this cover each time you transport the projector. This to prevent intrusion of dust and foreign particles.
Note: The lens is delivered in a separate box.

[2] When no power cord for your region/country is provided, contact your dealer. The power cord must be suited for the electrical ratings indicated on the product ID label. Only power cords according to the local electrical code regulations can be used.
