Main Power requirements

• The projector operates from a nominal mono phase power net with a separate earth ground PE.
• Power requirements : 100-160 V (reduced power) / 200-240 V~, 14 A, 50/60 Hz.
• The projector must be grounded.

Environment conditions

Temporary event (up to one week)

• Always protect the projector from rain, moist, dust, smoke machine or polluted air.
• Use the Barco software tools (e.g., Insights Management Suite, Pulse Toolset, Pulse Prospector) to monitor the environment and performance of the projector.
• Check the filters daily and clean/replace if needed, as the air cleanness of the install site is unknown (e.g., not a clean office environment).

• Always use an environment protection housing if the air cleanness is unknown or has high pollution risk.

  • An active cooled environment protection housing will provide the best performance of the projector overtime.

Permanent install (more then one week)

• Always protect the projector from rain, moist, dust, smoke machine or polluted air.
• Use the Barco software tools (e.g., Insights Management Suite, Pulse Toolset, Pulse Prospector) to monitor the environment and performance of the projector.
• Clean or replace the filters within a defined interval. The interval will be based on the monitoring results of the environment.

• Always use an environment protection housing if the environment has high pollution.

  • An active cooled environment protection housing will provide the best performance of the projector overtime.

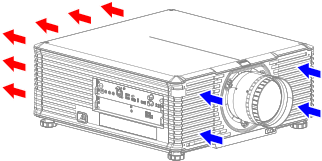

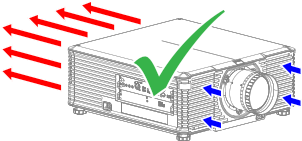

Air inlets and outlets clearance

The projector must be installed with sufficient free space around the air inlets and outlets to ensure sufficient air flow.

• Minimum 10 cm (4 inch) at the projector front side (air inlets).
• Minimum 40 cm (15.7 inch) at the projector rear side (air outlets).

If the outlets of the projector are too close to a solid object, the hot air from the air outlets may find its way back into the air inlets, which will rapidly increase the temperature inside the projector.

Lower airflow will have impact on:

• the performance of the projector
• the lifetime of the components of the projector
• long exposure on low air flow can permanently damage projector components.

DMD™ protection

• Avoid at all times that laser beams hits direct or indirectly the optics of the projection lens.

  • Direct or indirect hitting of a laser beam on to the lens can severely damage the Digital Mirror Devices^TM in which case there is a loss of warranty.

• Avoid at all times that direct sunlight hits the optics of the projection lens.

  • Sunlight on the lens can severely damage the Digital Mirror Devices^TM in which case there is a loss of warranty.

Projector Weight

The projector weights about 23.7 kg (52.3 lbs) without lens or frame.

Ensure that the pedestal on which the projector will be installed is capable of handling five times the complete load of the system.
