8.1 Installing the dust filter

Required tools

Torx screwdriver T10

How to install

  1. Position the dust filter assembly (foam + holder) on the front cover of the projector.

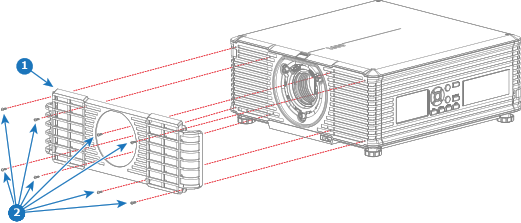

    Image 8–1

  2. Fasten the dust filter assembly with 8 screws (Image 8–1 reference 2). Use a Torx screwdriver T10.

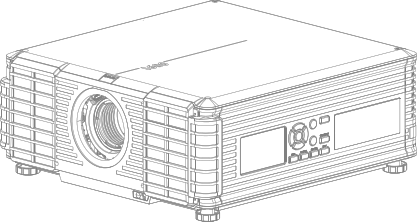

    Image 8–2 Dust filter installed.
