5.5 Widget panel

Widgets
It Is possible to create custom buttons in a custom web page layout. These buttons can be given predefined functionality. Making the Event Master processor controllable from any device within the same network as the unit. These layouts are called widgets in Event Master.
About widget panel

The widget panel of the Encore3 will automatically detect any created layouts. Layouts created in the front panel resolution (800x480) can be displayed on the front panel. For more information on how to create widgets, see “Creating a widget”.

How to use

  1. Select the compatible widget from the list.

    Note: Widgets that are not compatible with the front panel will have a notice resolution does not match.

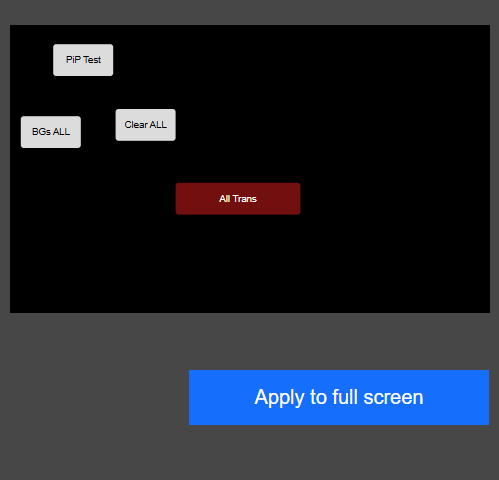

    Image 5–53

    A preview of the widget will be shown.

  2. Tap on Apply to full screen to activate the widget.

    Image 5–54
  3. Tap on any desired button to execute its effect.
  4. Close the widget panel by tapping the x ().
