5.4.1 Backup

Location

ShowFile Management > Backup

Required parts

8GB+ USB stick formatted in FAT32.

How to create

  1. Insert the USB stick in the desired port:

    • ‘USB-A’ port (reference 1) at the front.
    • ‘USB-C’ port (reference 2) at the back.
    Image 5–33
    Image 5–34

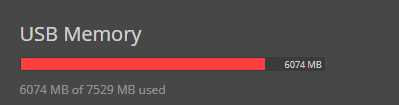

  2. Ensure enough free memory is available.

    Image 5–35

  3. Tap on Backup to create a ShowFile.

    Tip: All detected ShowFiles are shown in a list on the left side.
    Image 5–36

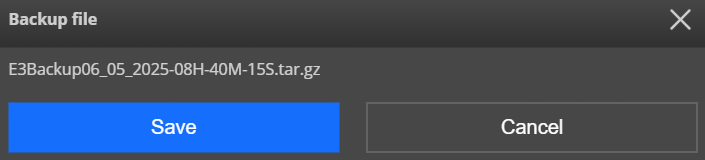

    A confirmation pop-up is shown.

  4. Tap on Save to store the ShowFile.

    Image 5–37

    The ShowFile will be stored under the folder ‘EM\backup\sys’ with the extension .tar.gz.

  5. Remove the USB stick.
