7.10.3.1 Mixing or splitting layers

Location
  1. Navigation side bar: Programming
  2. Central work area: Screen layer bar
Prerequisites

The screen layer bar is only visible when three or less destinations are being viewed in the central work area.

How to mix or split

  1. Is the screen layer bar visible in the middle of the central work area?

    • If no, toggle the layer view in the upper right corner of the central work area and go to next step.
    • If yes, go to next step.
    Image 7–103

  2. Select either the ‘A’ or ‘B’ section of the desired layer(s) in the screen layer bar.

    Tip: Hold CTRL or ⌘ to select multiple entries at once. If this does not work, enable the keyboard shortcuts in the settings. For more information, see “Event Master Toolset options”.

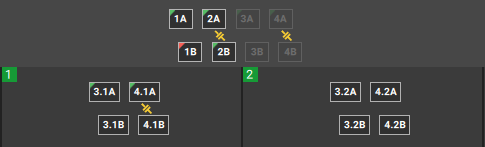

    Image 7–104 Example of a wide screen destination with split, mix and output layers

  3. Are the layers mixed or split?

    • If mixed, click Split in the bottom panel to separate the ‘A’ and ‘B’ layer.
    • If split, click UnSplit in the bottom panel to merge the ‘A’ and ‘B’ layer.
    Note: It is not possible to mix layers with a different number. Meaning, layer ‘1A’ can only be mixed with ‘1B’ and no other layer.
    Tip: Split layers have the split icon () between the ‘A’ and ‘B’ layer.
    Tip: If the selection contains multiple layers in a different state, then the first selected layer will dictate the available behavior.
    Image 7–105
    Image 7–106
  4. Click the save icon () in the header.
