About backup
Creates a ShowFile of the current active show. This ShowFile file can be stored on a USB connected to the front USB port or on the connected computer.
6.4.2 Backup
How to backup to the local computer
Select the tab from the table.
Image 6–14 Click on .
Image 6–15 A progress bar will appear at the bottom of the table.
Store the ShowFile in the desired location using the pop-up.
The ShowFile will be saved with the extension .tar.gz.
How to backup to a USB stick
Select the tab from the table.
Image 6–16 Ensure enough free memory is available.
Image 6–17 Click on to create a ShowFile.

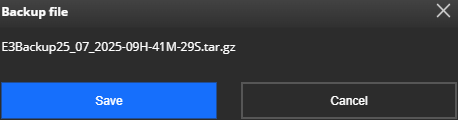

Image 6–18 A confirmation pop-up is shown.
Click on to store the ShowFile.
Image 6–19 The ShowFile will be stored under the folder ‘EM\backup\sys’ with the extension .tar.gz.
