About test pattern

Test pattern shows a static image that is useful for testing outputs, resolution of outputs and image quality. They can also be used to calibrate certain devices or ensure uniformity of the image across devices.

How to enable

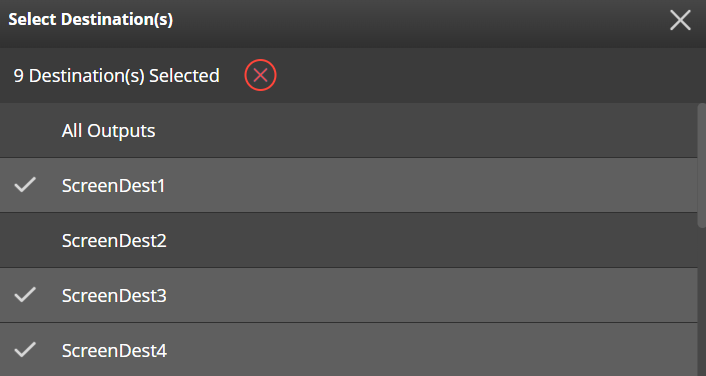

1. Select or deselect the desired output(s) from the drop down menu below Test Pattern.



   Tip: Clicking or pressing the red x () after Destination(s) Selected will clear all selected outputs.

   Choosing the option All Outputs will set all outputs to selected.

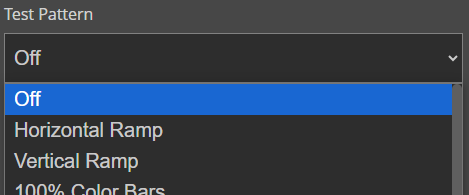

2. Select a desired test pattern from the drop down menu below Test Pattern.



   Note: Test pattern Off will remove the test pattern.



3. Add additional effects on top of the test pattern by toggling the slider after the desired effect. (optional)



4. Is the image on all outputs as desired?

   • If no, repeat step 2 and step 3 until the image is as desired.
   • If yes, go to next step.

5. Disable the test pattern using one of the following methods.

   • Select test pattern Off from the drop down menu below Test Pattern.
   • Deselect all outputs by tapping the All Off push button.
