Overview

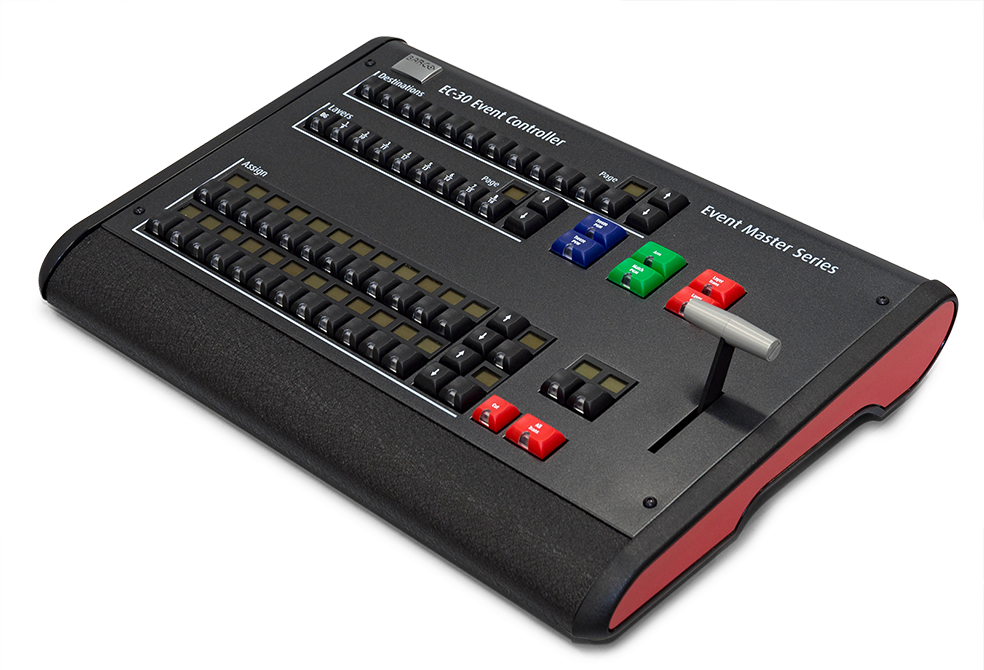

The EC-30 controller is a compact controller providing programmable buttons and a T-bar.
2.5.2 EC-30

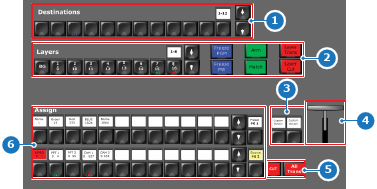

Button layout
Tip: For more information about the functionality of each button, see “Using Event Master controllers”.
- 1
- Screen destination buttons
- 2
- Layer buttons
- 3
- Custom buttons
- 4
- T-bar
- 5
- Transition buttons
- 6
- Two rows of assign buttons
