About rack mounting
The Encore3 is designed to be secured to the rack from both the back side and front side. This helps keep the integrity of the unit in tact.
4.4 Rack mounting
Required tools
- Phillips screwdriver PH2
- Torx screwdriver T20
Required parts
- Rack
- Side brackets
- Side rails
- Screws
How to mount

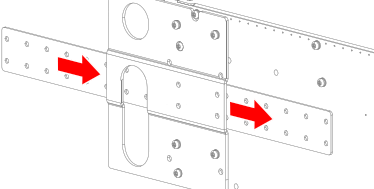

Slide the side rails into the protrusions of each rear connector protector as illustrated.

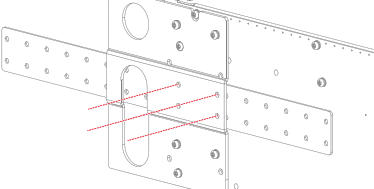

Image 4–5 Secure the side rails to the Encore3 as illustrated. Use a T20 Torx screwdriver.
Note: Ensure enough of the side rails sticks out. These will need to go through the side brackets.

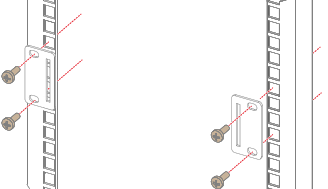

Image 4–6 Secure two side brackets with four screws on the desired height at the back of the rack. Use a PH2 Philips screwdriver.

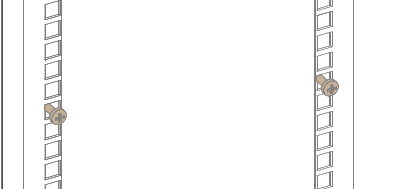

Image 4–7 Partially insert two screws on the lowest desired height at the front of the rack. Use a PH2 Philips screwdriver.

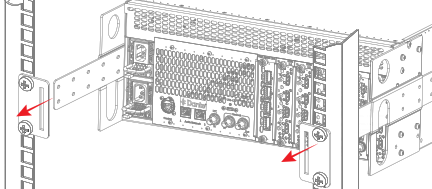

Image 4–8 Guide the attached side rails through the prepared side brackets at the back of the rack.
Caution: Lift the unit with two people, one at the front and one at the back. The unit must remain level during the entire mounting procedure to avoid damaging the frame or the rack.

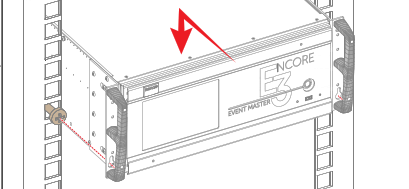

Image 4–9 Hook the Encore3 keyholes over the two screws at the front of the rack and push downwards to lock the keys.
Image 4–10 The second person can let go of the backside.

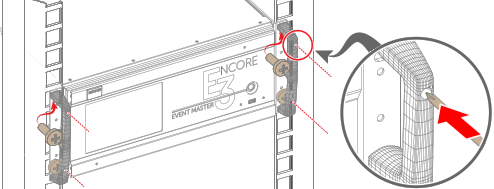

Secure the Encore3 to the rack with four screws. Use a PH2 Philips screwdriver.
Tip: Guide the screw driver through the cutouts in the handles for easy access.
Image 4–11
