5.4.2 Restore

Location

ShowFile Management > Restore

Required parts

8GB+ USB stick formatted in FAT32.

How to restore

  1. Insert the USB stick in the desired port:

    • ‘USB-A’ port (reference 1) at the front.
    • ‘USB-C’ port (reference 2) at the back.
    Image 5–38
    Image 5–39

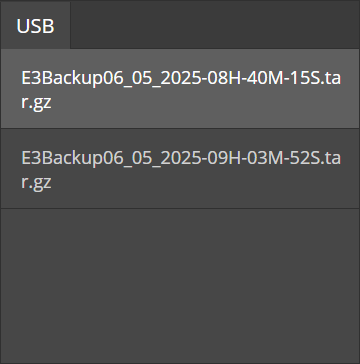

  2. Select the desired ShowFile from the list

    Tip: ShowFiles must be in an ‘EM\backup\sys’ folder to be detected.
    Image 5–40

  3. Tap on Restore.

    Tip: An unwanted selection can be removed by tapping the x after the name
    Image 5–41

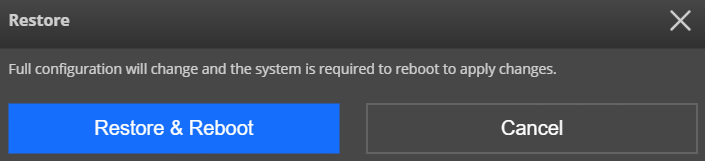

    A confirmation pop-up is shown.

  4. Tap on Restore & Reboot to recall the settings from the ShowFile.

    Note: All the current settings will be overwritten. This action cannot be undone.
    Image 5–42

    The reboot may take several minutes.

  5. Remove the USB stick.
