About the power supply

There are two power supplies present in the Encore3. Both are identical and follow the same procedure.

Required parts

Power supply

How to replace

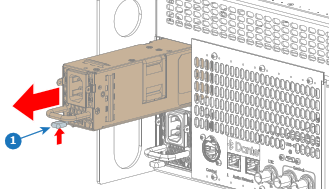

1. Lift the lever (reference 1) and pull on the handle to remove the desired power supply.

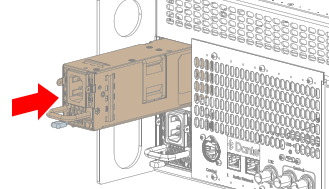

2. Slide the new power supply into the desired slot as illustrated.



   Note: Ensure the power supply is inserted all the way. An audible click can be heard when the power supply locks in place.


   Caution: Do not use excessive force while inserting to avoid damaging the connectors.
