Contact info

Contact info is a text field where any text can be added. This field is intended to for the contact information of the local support responsible or technician that must be contacted in case of issues.

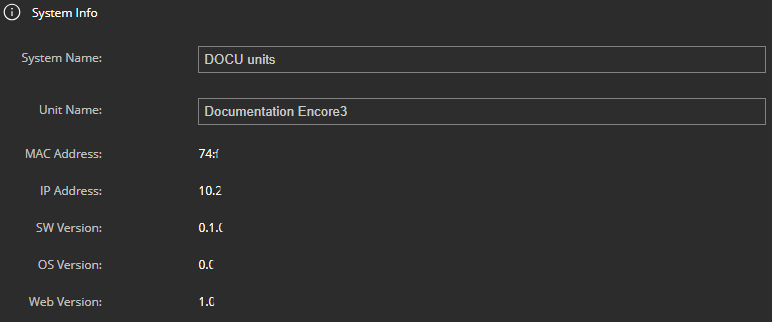

System info

General information about the connected unit(s) can be found here. It is also possible to name the Encore3 or, in case of linked units, name the entire system.

Enter the desired name of the system in the input field after System Name: and the name of the unit in the input field after Unit Name:.

Tip: The name fields cannot be empty, a red outline will appear around the input field when it is empty.

Product info

General information about the product and the privacy statement can be found here.

About IP address

Two main methods for IP configuration are possible:

• Static mode, sets the Encore3 to a fixed IP address that is user defined.
• DHCP mode, means the Encore3 will request an IP address from the DHCP server of the network it is connected to.

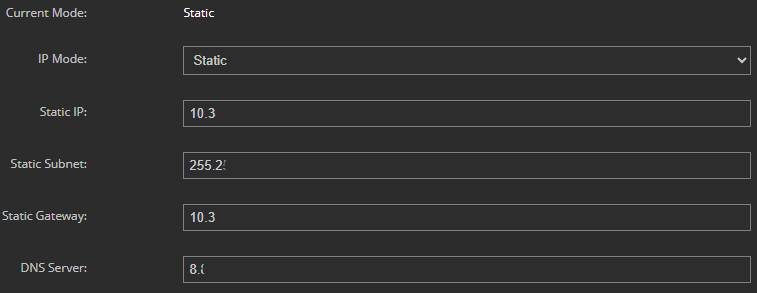

Network configuration

1. Select the desired mode from the drop down box after IP Mode.

   • In case of DHCP, go to step 3.
   • In case of Static, go to next step.

2. Fill out the required network information. For more information, contact the local IT department.



3. Click on Apply to confirm the settings.



   Note: Changing the IP address will cause the web page to loose connection.



4. Access the web page with the new IP address. For more information, see “Accessing the web page”.
