6.8.1 Base Unit status

About Base Unit status

An overview listing general information about the current state of Base Unit is given. This information is purely informational and cannot be modified.

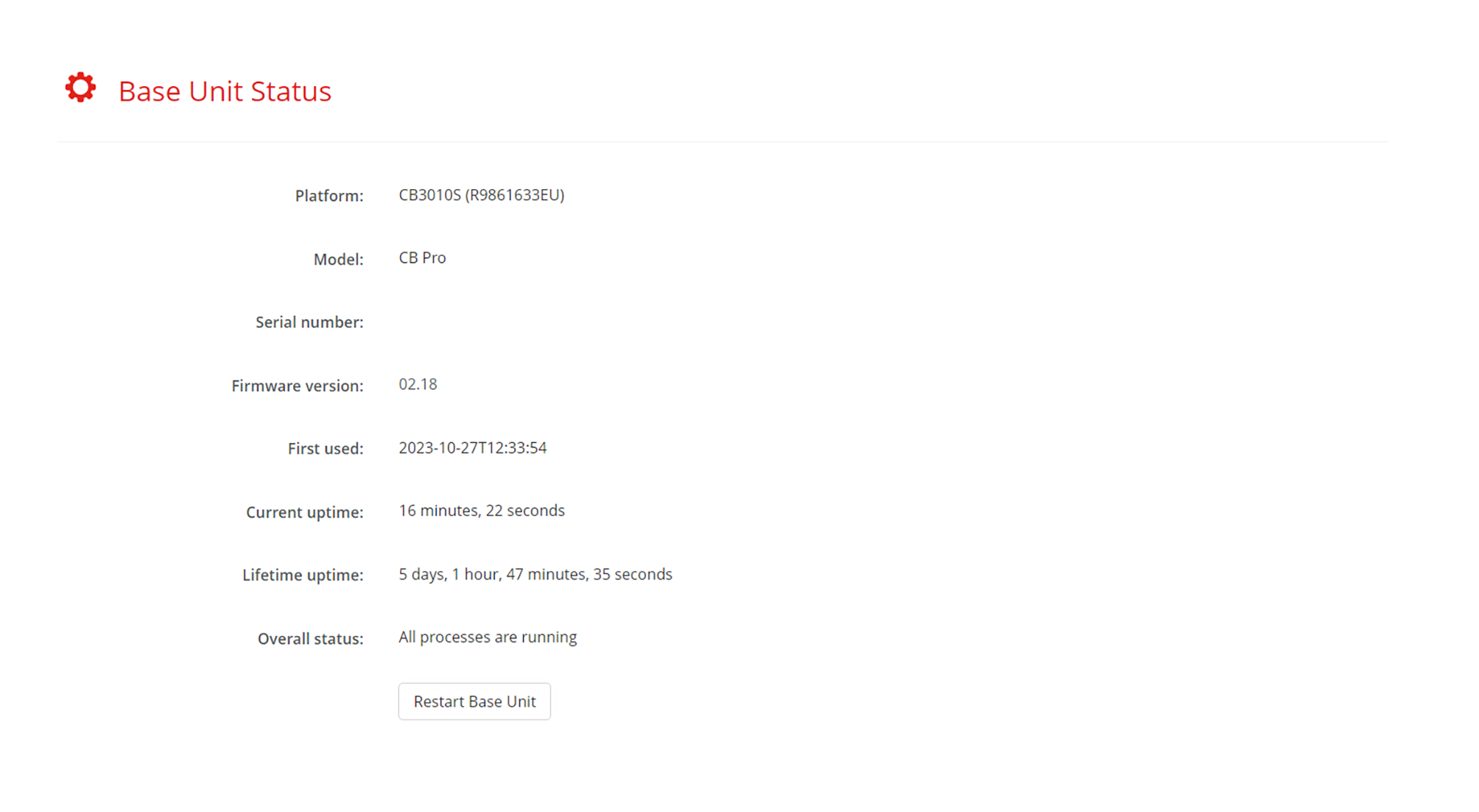

Image 6–54 Example of the Base Unit status
Restarting the Base Unit

  1. Click the button “Restart Base Unit”

    A software reboot will be triggered

    “ClickShare System Reboot” window will appear and the LED ring will start to flicker.

  2. Wait until the progress bar has completely reached the end and LED ring is solid white again.

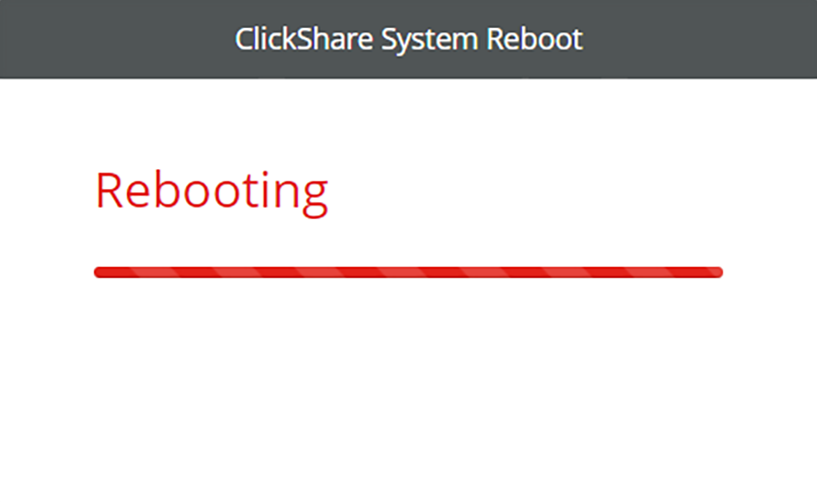

    Image 6–55 Example of a completed reboot progress bar

    The page will be automatically refreshed. If that is not the case, reconnect with the Base Unit and reload the page.
