6.3.3 Configuration files

About configuration files

Configuration files can save settings and history of a Base Unit. These files allow for a quick restore of settings on the same Base Unit or to transfer settings to other similar Base Unit(s).

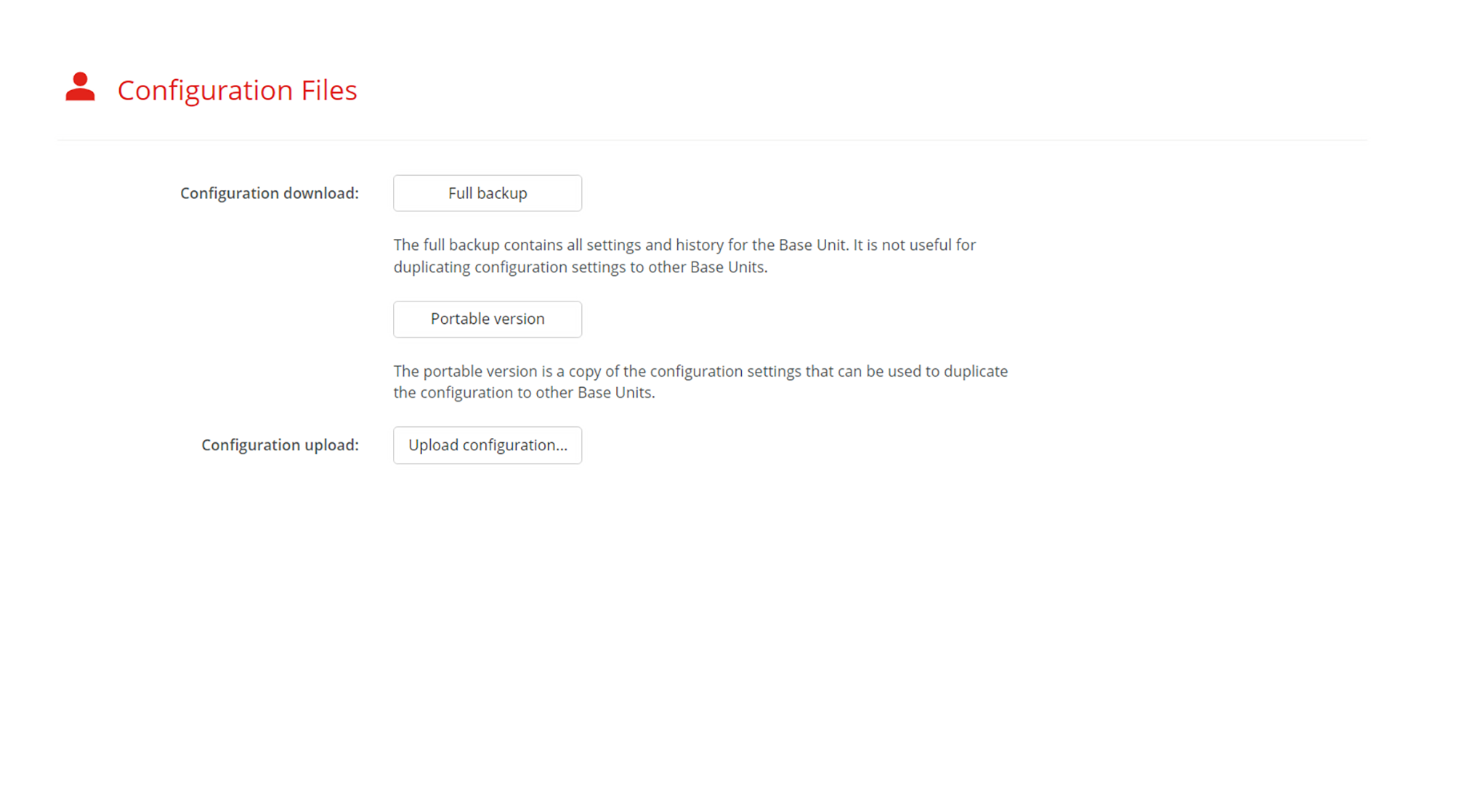

Image 6–16 Example of the configuration files page in the configurator
Creating a backup / configuration file

  1. Decide which type of backup is applicable by clicking on the push button with the name of the chosen type:

    • Full backup, to restore settings of the same Base Unit where the backup was created.
    • Portable version, to transfer settings to Base Unit(s).
  2. Save the created backup file in a desired location.
Restoring a backup / configuration file
  1. Click on the push button “upload configuration...”.

  2. Navigate to the location of the desired backup file.

    A warning will be displayed after progress reaches 100%.

  3. Double check if the correct file was chosen.

    • If the correct file was chosen, click “Yes, continue” to finalize the process.
    • To select another file or abort the backup process press “No, I changed my mind”.
