If a display is correctly connected to the ClickShare Base Unit, then its model and vendor name will be displayed after “Model & Vendor” under the used connection type. If no display is detected, then this field will be hidden and its options greyed out.
Any undesired connection protocol can be disabled by toggling the check box in front of “Enable”.
Note: If a display is connected to a disabled connection protocol, then no image will be displayed on the screen,

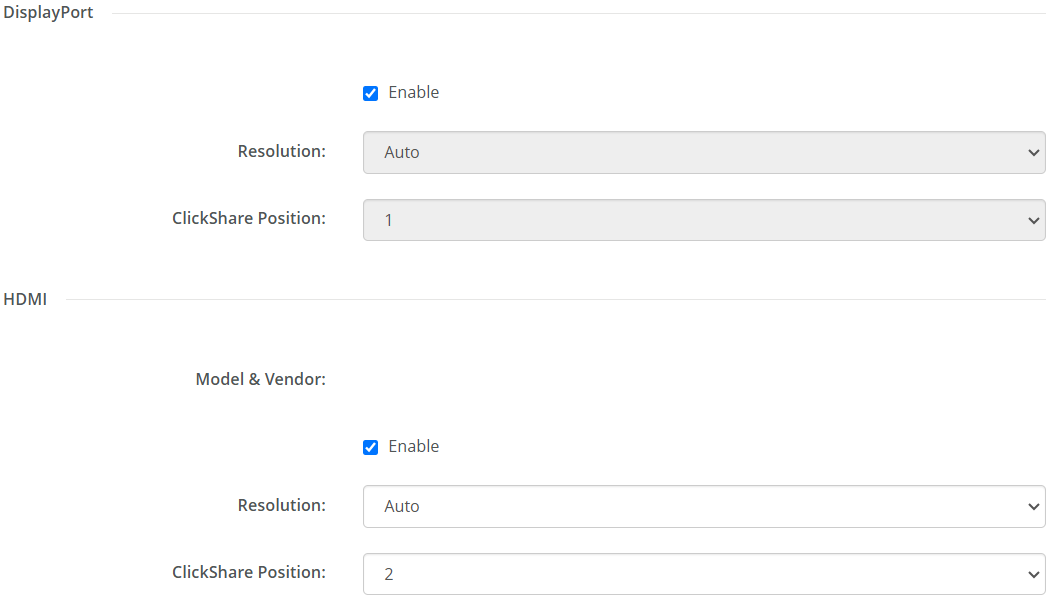

Image 6–28Example of the display options for one connected display on HDMI
Resolution
By default the resolution is set to “Auto”, meaning ClickShare will follow the displays settings. However, it is recommended to select a fixed resolution.
Select the desired resolution to be displayed from the drop-down list after “Resolution”.
Note: Click the “Save changes” push button, to commit the modifications to the Base Unit.
Position
If two displays are connected to ClickShare, then it is possible to switch their position.
Select a different number from the drop-down list after “ClickShare Position” to swap the two displays.
Note: Click the “Save changes” push button, to commit the modifications to the Base Unit.
