6.8.4.2 Connection

About

The Button can be connected to the Base Unit through its own network or via the corporate network.

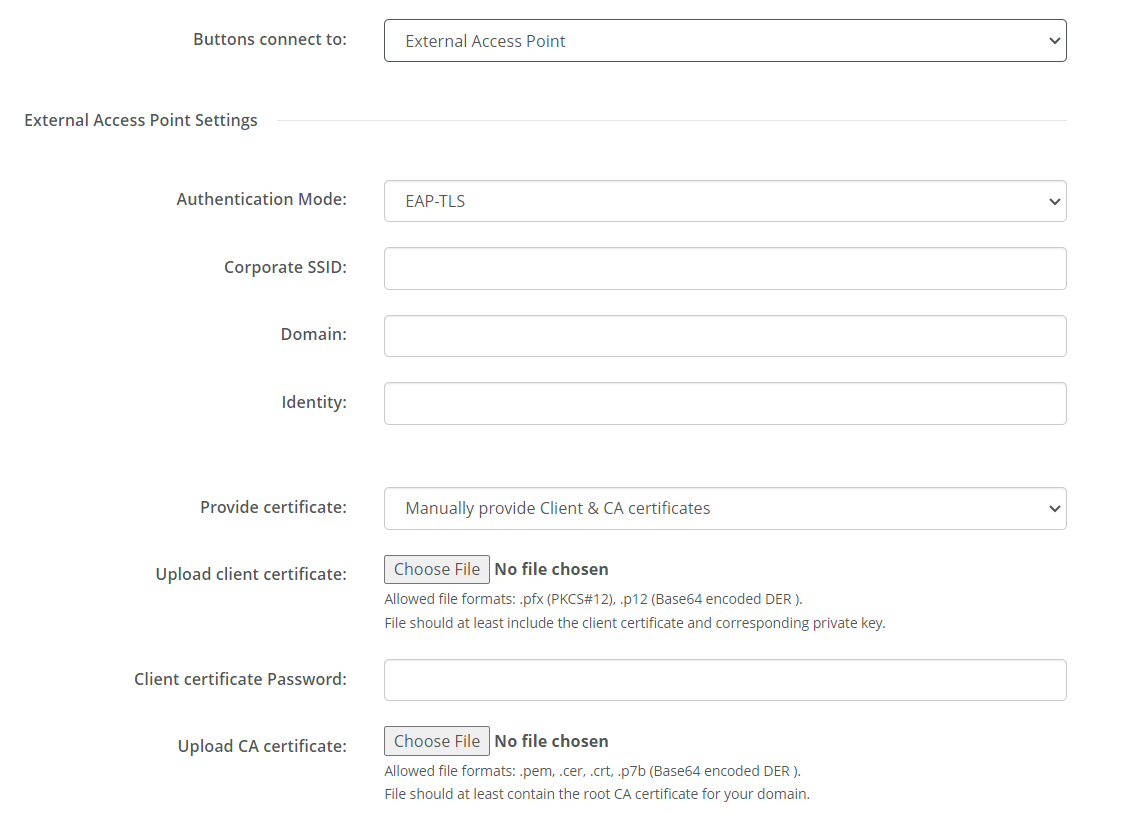

Image 6–61 Example of changing view to external access point in edit
How to change
  1. Click on “Edit settings”.

  2. Must the Button connect to the a network?

    • If no, select the “ClickShare name” from the drop-down list and go to step 4.
    • If yes, select the “External Access Point” from the drop-down list and go to next step.

  3. Fill out the network configuration in the fields under “External Access Point Settings”.

    Note: For information about how to fill in these fields or what to select for the drop-down lists, contact the local IT responsible of the network.
  4. Click “Save changes” at the top of the page to commit the changes to the Base Unit!
