6.2.2 Header

Overview

The header consists of three basic features and can be accessed at any time while navigating the ClickShare configurator:

Image 6–3 Example of the header of the configurator
About dashboard

The dashboard can be seen as a homepage or landing page for the configurator and is the first page that gets displayed.

Clicking on the text “ClickShare Configurator” at the center of the header, will show the dashboard page. For more information, see “Main window”

About language selector

The language selector allows for the configurator to be displayed in multiple languages. The chosen language is applied across the entire web application and can be changed at any time.

Change the language by clicking on the name of the current display language or by clicking on the downwards arrow to the right of said text.

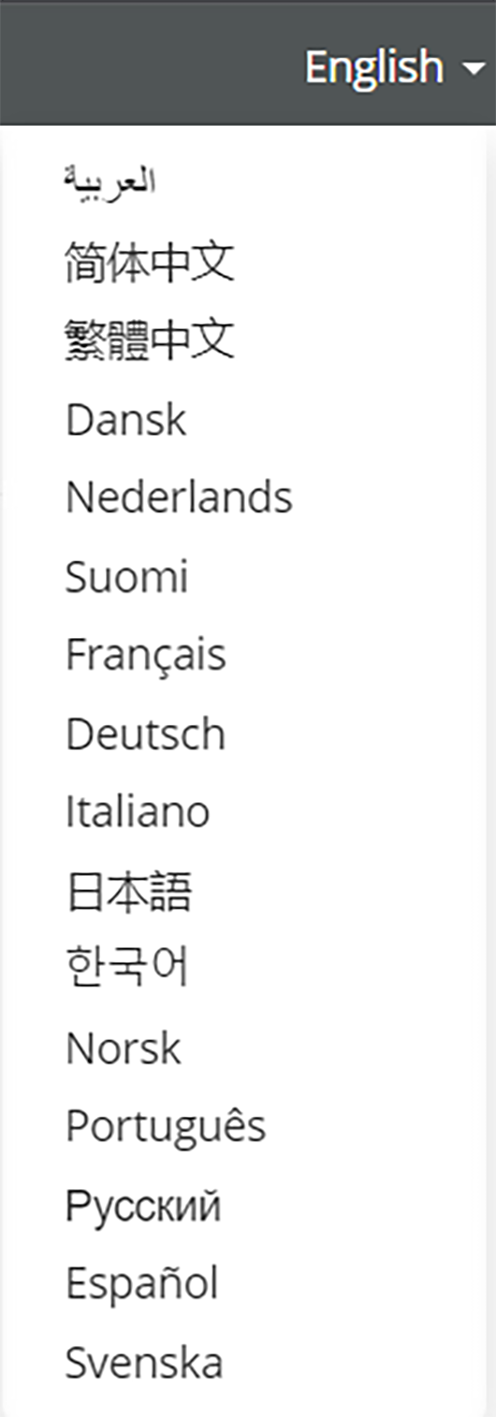

Image 6–4 Example of the language selector and the available languages
About logout
Image 6–5 Logout icon

Logging out can be done by clicking the icon to the right of the language selector downwards arrow. When logged out, the configurator will be redirected to the log in page and request a sign in.
