The On-Screen ID is a window that shows basic information about the ClickShare on the connected screen. This information can be shown in one of two types:
Standard, showing detailed information over the wallpaper.

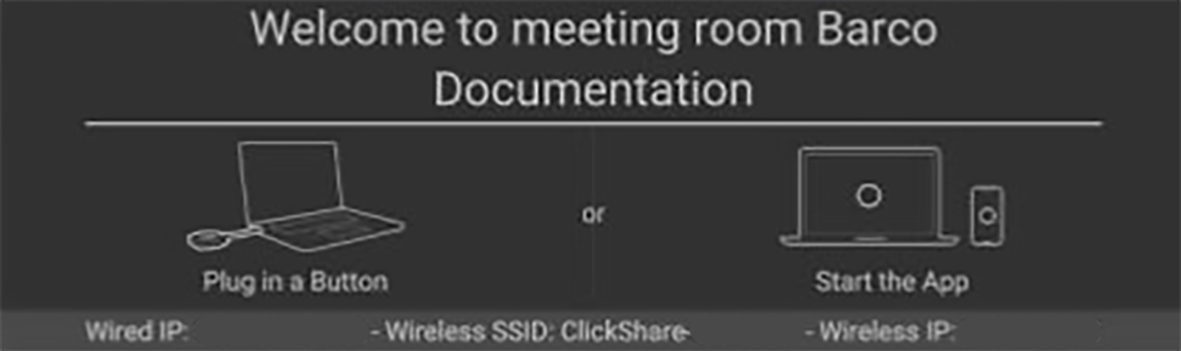

Image 6–9Example of an on-screen ID over the wallpaper
Small, showing the most important information on the status bar at the bottom.
Image 6–10Example of an on-screen ID in the status bar
How to edit on-screen ID
Depending on the chosen on-screen ID type different information can be displayed. Which information that gets shown can be modified by editing the following information:
Select the display language from the drop-down list after the text “Language for on-screen text”.
Show the name of the meeting room in the input field after “Meeting room name”.
Show the location of the meeting room in the input field after “Location name”. (Only for standard type)
Enter a welcome message to be displayed in the input field after “Welcome message”. (Only for standard type)
Toggle the network information with the checkbox before “Show network info”. Only one network connection, with preference for the wired connection, will be shown for the small type.
Toggle whether the status bar at the bottom of screen is shown or hidden while sharing with the checkbox before “Enable theater mode”.
Note: Click the “Save changes” push button, to commit the modifications to the Base Unit.

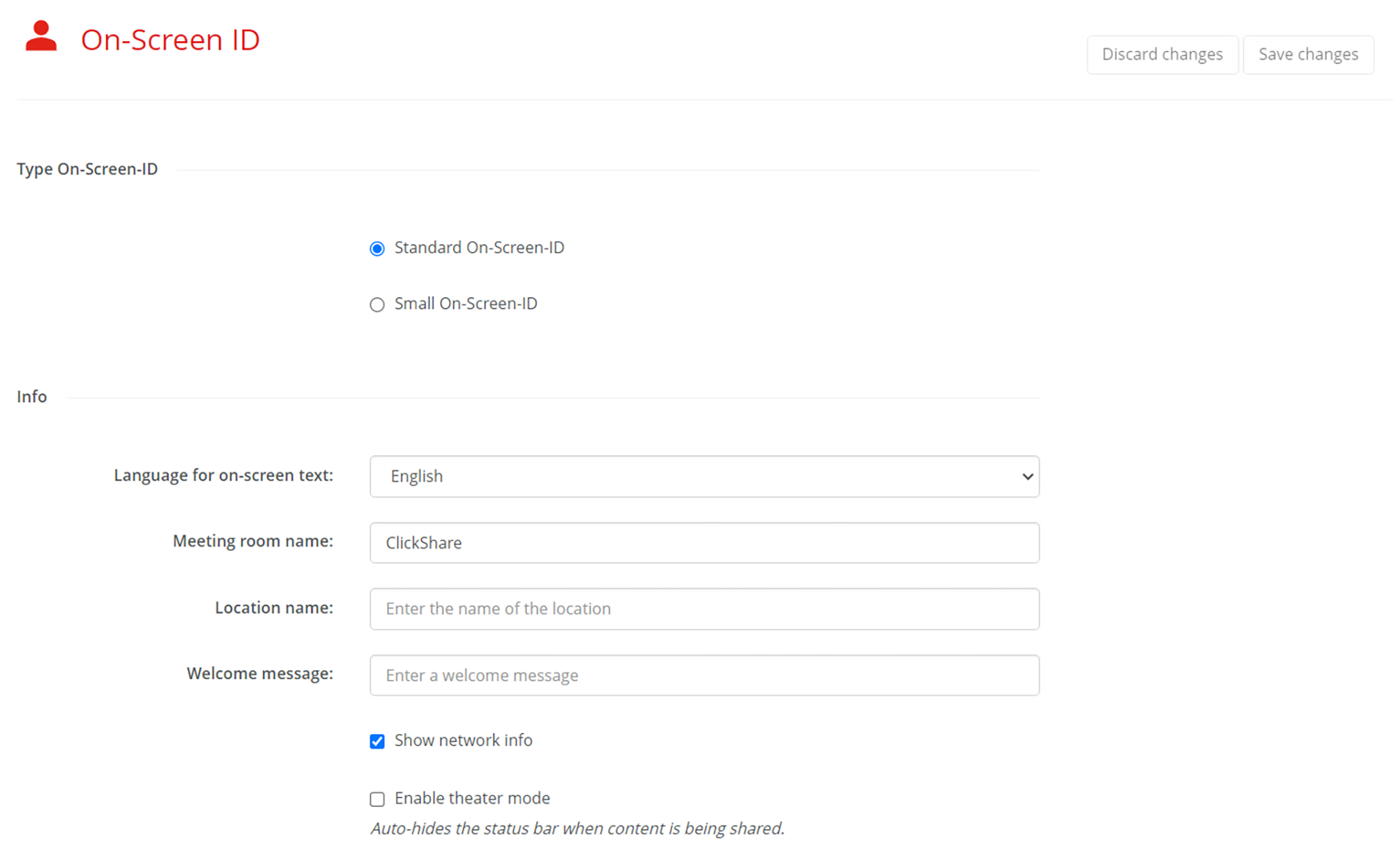

Image 6–11Example of the on-screen ID page in the configurator
