4.1.3 Wall mounting

About wall mounting

A wall mount is attached to the CB Core, CB Pro that can be used to secure it to the wall. Two screws are needed to ensure the Base Unit is firmly secured to the wall.

The two required screws must comply with the following minimum requirements:

Note: These screws are not included with the CB Core, CB Pro!
How to install
  1. Define and prepare the location on the wall where the Base Unit will be installed.

  2. Tilt the wall mount towards the backside of the Base Unit.

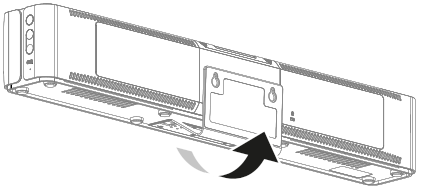

    Image 4–4 Tilt orientation of the wall mount as seen from the back

  3. Screw two screws that comply with the above requirements through the keyhole slots present in the wall mount.

    Note: Ensure that the screws have been tightened fully!

  4. Tilt the Base Unit to achieve the desired angle. (optional)

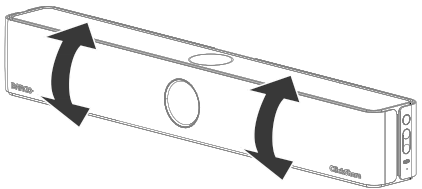

    Image 4–5 Possible tilt direction while the Base Unit is attached to the wall
