Note: The ClickShare collaboration bar is referred to as “Base Unit” throughout the manual.
The collaboration bar controls and enables the functionality of the ClickShare. It has a camera, speakers, microphones and ultrasound speaker built-in. There are two variants of the bar available:
The CB Core, enabling an essential ClickShare experience.
The CB Pro, enabling the complete ClickShare experience.
Note: CB Core, CB Pro is only compatible with generation 4 Buttons! For more information, see “The conferencing Button”.
Collaboration bar components

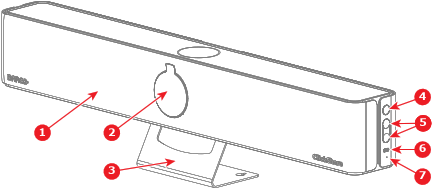

Image 2–1Front view with privacy door attached
1
Front cover
2
Camera privacy door
3
Wall mount/stand
4
Power button
5
Volume control
6
USB-CTM port for pairing Button(s)
7
Reset button

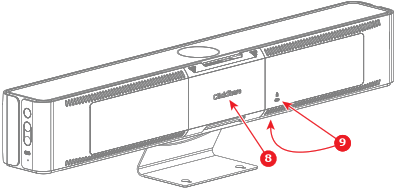

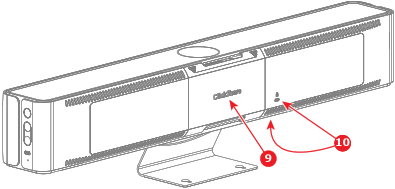

Image 2–2Back view with cable cover attached
8
Cable cover
9
KensingtonTM lock
Removing the cable cover gives access to the connections and ports.

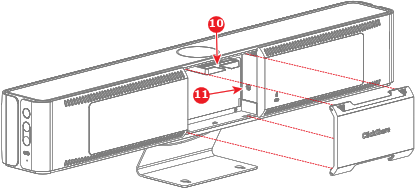

Image 2–3Back view with cable cover removed
10
Cable binder
11
Power connection
Removing the privacy door reveals the camera lens.
Tip: There is an additional plastic protective layer on the lens for new devices!
Remove this plastic layer before use.

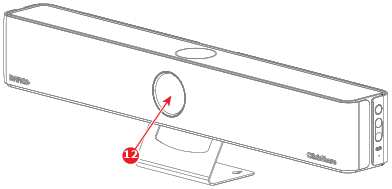

Image 2–4Front view with privacy door removed
12
Camera lens
There is a difference in which ports are available based on the model:
CB Core’s ports:

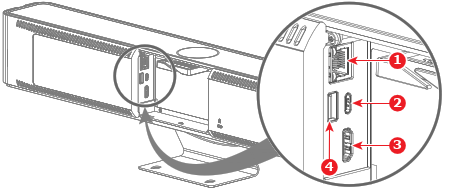

Image 2–5CB Core without a cable cover
1
LAN port
2
USB-CTM port
3
HDMITM out port
4
USB-A port
CB Pro’s ports:

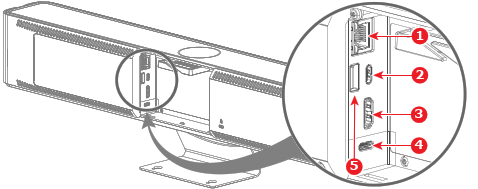

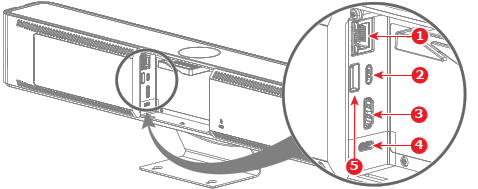

Image 2–6CB Pro without a cable cover
1
LAN port
2
USB-CTM port
3
HDMITM out port
4
USB-CTM port
5
USB-A port
LED ring
There is an LED ring at the front of the Base Unit that communicates what the current status of the ClickShare and its peripherals are.
See the following table to know what each color or color animation stands for:
