9.7 Mounting the back cover

Required tools

7 mm flat screw driver

How to mount

  1. Place the back cover on the backside of the projector.

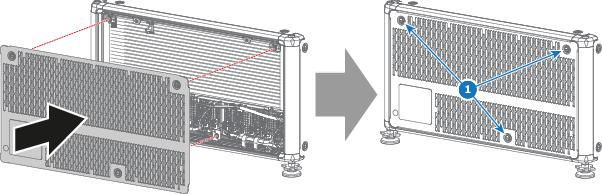

    Image 9–8 Mount back cover
  2. Fasten the three captive screws (reference 1).
