9.6 Mounting the left cover

Required tools

7 mm flat screw driver

How to mount

  1. Place the cover on its place, with the grating of the filter facing the backside of the projector.

    Caution: Do NOT try to fasten the cover while holding it upside down (with the filter facing the front side). This WILL damage the projector.

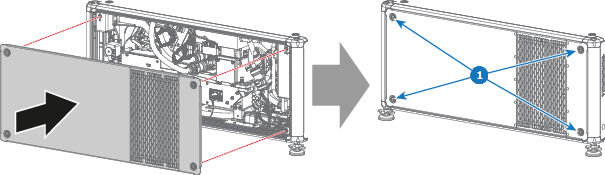

    Image 9–7 Mount left cover (light processor side)
  2. Fasten the four captive screws (reference 1).
