9.2 Removal of the left cover

Required tools

7 mm flat screw driver

How to remove
  1. Loosen the four captive screws (reference 1) of the light processor cover. Use a 7 mm flat screwdriver.

  2. Remove the cover from the projector.

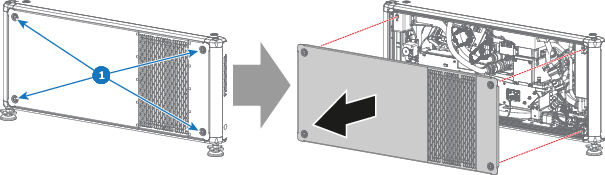

    Image 9–2 Removal of the left cover (light processor side)
