9.3 Removal of the back cover

Required tools

7 mm flat screw driver

How to remove
  1. Loosen the captive three screws (reference 1) of the backside of the projector. Use a 7 mm flat screwdriver.

  2. Remove the cover from the projector.

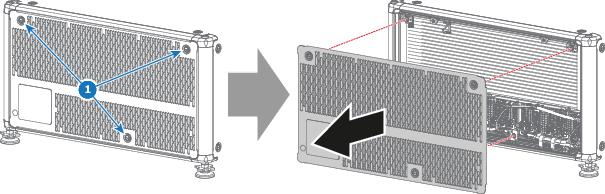

    Image 9–3 Remove back cover
