9.4 Removal of the small top cover

Required tools

7 mm flat screw driver

How to remove

  1. Loosen the two captive screws (reference 1) of the small top cover at the back side of the projector.

    Image 9–4
    Caution: Only loosen the captive screws at the backside of the projector. It is not necessary to loosen the captive screws at the front side of the top cover.

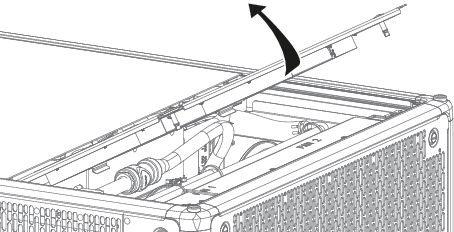

  2. Flip the small cover open and remove it carefully.

    Image 9–5 Flip the small top cover
