9.3 Installing the battery holder

Required tools

Torx screwdriver T10

Required parts

AA batteries x2 (not included in kit))

How to fixate the battery holder

  1. Mount the battery holder as illustrated. Use a T10 Torx wrench to tighten the two screws.

    Image 9–4 Mounting the battery holder
  2. Guide the cable from the battery holder towards the front of the projector.

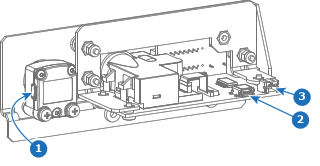

  3. Connect the plug of the battery holder to the connector of the laser range finder assembly (reference 3).

    Image 9–5

  4. Place two AA batteries in the battery holder, making sure the polarities match the + and - marks inside the battery holder.

    Caution: Place the batteries as explained. There is a risk of explosion if the battery is incorrectly installed.
    Caution: Replace with the correct battery type. Use two AA size batteries. There is a risk of explosion if the battery is replaced with an incorrect type.
