About the batteries for the remote control

Note: Due to updated shipping regulations, batteries are no longer included in the packaging. It is up to the user to purchase the correct batteries.

Use two AA size (alkaline) batteries in the remote control.

Install the batteries before using the Pulse RCU.

Caution: Replace with the correct battery type. Use two AA size batteries. There is a risk of explosion if the battery is replaced with an incorrect type.

Required parts

AA size alkaline battery (two pieces)

How to install

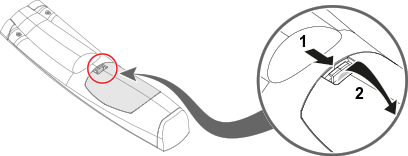

1. Push the battery cover tab with the fingernail a little backwards (reference 1) and, at the same time, flip the cover outwards (reference 2).



2. Insert two AA size batteries into the battery compartment.

   making sure to match the polarities of the batteries to the + and - marks inside the battery compartment.



   Caution: Place the batteries as explained. There is a risk of explosion if the battery is incorrectly installed.



3. Insert both lower tabs of the battery cover in the gaps at the bottom of the remote control (reference 3).

4. Press the top of the cover until in clicks in place (reference 4).
