10.1 About the upgrade kit

Content of the upgrade kit

Consult the following table to see what parts are used on which projector type.

Description	Pcs	UDX	UDM/QDX
Distance meter + camera assembly	1	X	X
Hex screw M4 x 6 mm, DIN 912 Socket	2	X
Torx screw M3 x 8 mm, countersunk	2	X	X
Torx screw M3 x 8 mm, flat head	2	X	X
Laser pointer extension button	1		X
Laser ranger board bracket	1		X
Battery holder plate	1	X	X
Distance meter shield	1		X
Cover plate for UDX (R8780180)	1	X
Cover plate for UDM/QDX (R8792900)	1		X
Battery holder for two AA batteries	1	X	X
Laser exposure label	1	X

Note: The battery holder is fit for two AA batteries. Batteries are not included in the kit.

Notice on differences in screw types

In the second half of 2023, several of the screws on the upgrade kit have been updated from Phillips head screws to Torx head screws.

The following procedures generally assume the screws in the upgrade kit will be of the Torx type, and require a T10 Torx screwdriver.

Depending on purchase kit, the purchased kit may still come with Phillips screws. In this case, a Phillips PH1 screwdriver will be required in every step where it mentions a T10 Torx screwdriver.

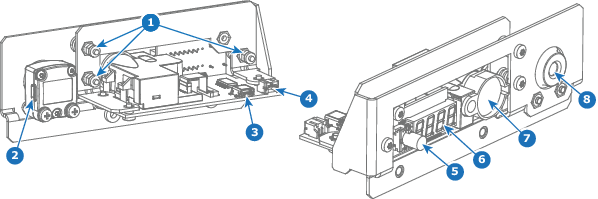

Component overview distance meter assembly

Note: The distance meter assembly can be used as-is for the UDX. For UDM and QDX, some remodelling is required.

Image 10–1
1
Distance meter adjustment screws
2
USB connector camera
3
USB connector distance meter
4
Connector battery holder
5
Distance meter push button
6
Distance meter display
7
Distance meter
8
Camera

Note: In the second half of 2023, the screws on the distance meter assembly have been updated from Phillips screws to Torx screws. Take into account that the screws can be of either type.

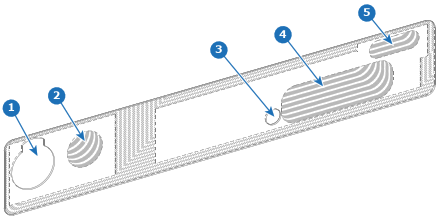

Cover plate UDX

The front side of the cover plate is painted black with a removable protective foil to protect it. The back side of the cover plate is painted black and has an adhesive placed on it.

Image 10–2
1
IR (Infra-Red) filter
2
Hole for the distance meter push button
3
Clear part for distance meter display
4
Clear part for the distance meter
5
Clear part for camera

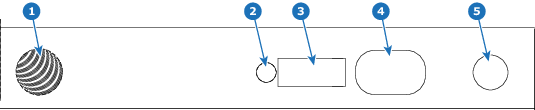

Cover plate UDM and QDX

Image 10–3
1
Hole for the XLR Connector
2
Clear part for camera
3
Clearance for the distance meter push button
4
Clear part for distance meter display
5
IR (Infra red) Filter
