3.2 Unpacking the projector

What has to be done ?

The projector is delivered in a cardboard box on a pallet and is secured with banding and fastening clips. Furthermore, to provide protection during transportation, the projector is surrounded with polymeric foam. Once the projector has arrived at the installation site, it needs to be removed from the box and pallet in a safe manner, without damaging the projector.

Note: After unpacking let the projector acclimatize to a room temperature between 10°C (50°F) and 40°C (104°F). Neglecting this may result in a start up failure of the Light Processor Unit.
Required tools

cutter knife

How to unpack

  1. Remove the banding around the cardboard box and open the box. Do this by releasing the fastening clips as illustrated.

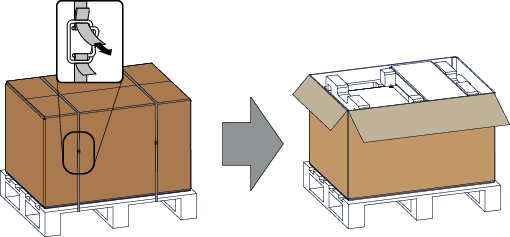

    Image 3–2 Opening box

  2. Remove the small box on top of the projector. This box contains the accessories such as manuals, remote control, etc.

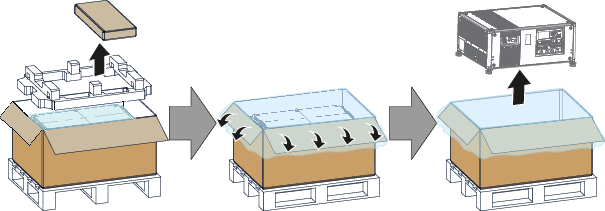

    Image 3–3 Remove accessory box, polymeric foam and projector
  3. Remove the polymeric foam from the top of the projector.
  4. Open the plastic bag and lift the projector out of its packaging
Tip: Save the original shipping cardboard box and packing material. They will be necessary if you ever have to ship your projector. For maximum protection, repack your projector as it was originally packed at the factory.
Note: A plastic lens holder cover is placed into the lens opening of the projector. It's recommended to reuse this cover each time you transport the projector. This to prevent intrusion of dust and foreign particles.
Note: The lens is delivered in a separate box.
