The projector can be installed on a table or upside down on the ceiling and this in a front projection or rear projection configuration. Depending on the physical configuration of the projector the projected image has to be rotated and/or mirrored as well. The projected image can be adapted via the menu Installation > Orientation. Possible orientations are:
Front / Table (F/T)
Front / Ceiling (F/C)
Rear / Table (R/T)
Rear / Ceiling (R/C)
Front projection
The projector is installed, either in a table mount or ceiling mount configuration, at the same side of the screen as the audience.

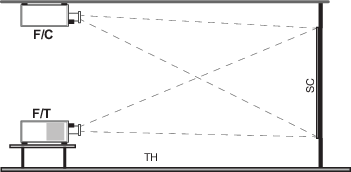

Image 3–4
FC
Front/Ceiling projection
FT
Front/Table projection
SC
Screen
TH
Theater (Audience area)
Rear projection
The projector is installed, either in a table mount or ceiling mount configuration, at the other side of the screen opposite the audience.

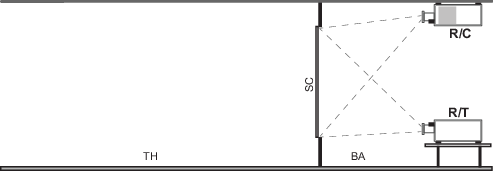

Image 3–5
RC
Rear/Ceiling projection
RT
Rear /Table projection
SC
Screen
BA
Backstage area
TH
Theater (Audience area)
Note: Some lenses (e.g. UST lenses) may require that the projector orientation needs to be adapted for the desired outcome.
