5.5.2 Change the motor block orientation

Note: The illustrations in this procedure are a single example, shifting the motor block rotation from current left side projection to HDX/HDF left side projection (seen from the rear side of the projector in table mount). Other examples are possible, but will use the same method.
Required tools

Allen wrench 2.5 mm

Required parts

Set screw M5x8 DIN915

Rotate the motor block of the lens

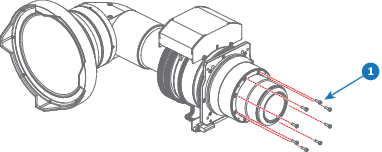

  1. Remove the eight screws (reference 1) as illustrated. Use a 2.5 mm Allen wrench.

    Image 5–23

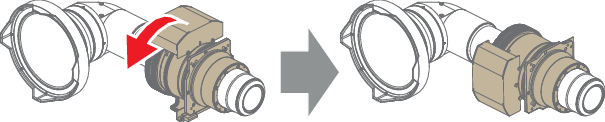

  2. Rotate the motor block around the lens body in to the desired position.

    Image 5–24

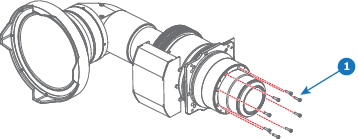

  3. Fasten the motor block with the eight screws removed in step 1.

    Image 5–25

  4. Turn the set screws of the mounting plate, depending on the projector used:

    • If used on a current projector, turn the set screw into the mounting plate until it exceed 1.5 mm on the other side of the mounting plate.

      Image 5–26

    • If used on an older HDX or HDF projector, turn the set screw out of the mounting plate until it doesn't exceed on the other side of the mounting plate.

      Image 5–27
