4.2.6 Collaboration bar

About collaboration bar

ClickShare can be used to seamlessly integrate supported collaboration bars.

How to connect

  1. Connect the collaboration bar to the back ports of the ClickShare.

    1. Connect an “HDMI” cable from the “HDMI out” port of the ClickShare to the “HDMI in” port of the collaboration bar (reference 1).
    2. Connect a “USB” cable from the “USB-A” port of the ClickShare to the dedicated “USB” port of the collaboration bar (reference 2).
    Note: Dual screen setups requires additional switching hardware.

    Plugging a secondary display into the front “USB-C” port directly is not supported!

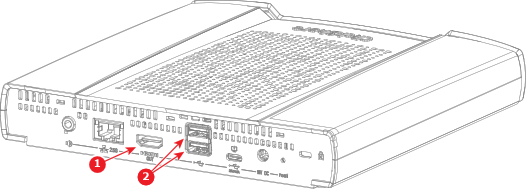

    Image 4–9 Location to connect the collaboration bar
    1
    Connection for the HDMI cable to the collaboration bar
    2
    Connection options for the USB cable to the collaboration bar
  2. Connect an ”HDMI” cable from the “HDMI out” port of the collaboration bar to the “HDMI in” port of the primary display
  3. Enable collaboration bar in the ClickShare configurator. For more information, see “Peripheral switching”
