About powering the Base Unit

There are two ways to power the Base Unit:

• With the included adapter.
• Through a display that supports USB-C power delivery of at least 65W.

Tip: When both options are connected the adapter will take priority in charging the Base Unit.

Powering with adapter

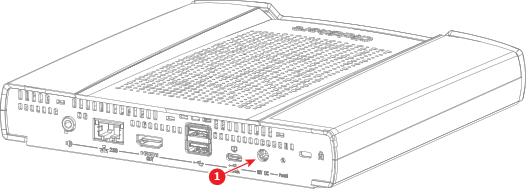

1. Connect the adapter to the power port of the Base Unit. (reference 1)



   Warning: Only use the certified Barco adapter that was included in the box or provided as spare, using a different adapter may cause severe damage!



2. Plug the adapter into a wall socket.

   When power is sufficiently provided to the Base Unit, the ring at the front will light up.

Powering over USB-C display

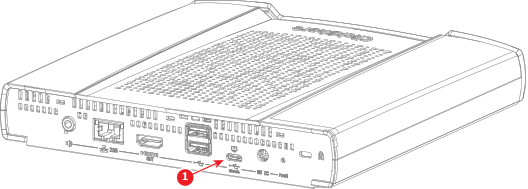

1. Connect a “USB-C” cable to the “USB-C” port at the back of the Base Unit. (reference 1)



   Note: It is possible to use this connection to both charge the Base Unit and display image on the connected screen.



2. Connect the “USB-C” cable to the “USB-C” port on the display.

   When power is sufficiently provided to the Base Unit, the ring at the front will light up.
