4.2.7 Modular setup

About modular setup

If the meeting room is equipped with a modular room controller, then ClickShare can be integrated with the modular setup. Allowing the ClickShare sharing and conferencing to make use of all the available room features.

Note: It is not possible to pair new Buttons while in Modular setup mode with the Base Unit in room system mode!
How to connect

  1. Make the connections at the back of the CX-50 Gen2.

    1. Connect an “HDMI” cable from the “HDMI out” port of the ClickShare to the “HDMI in” port of the room controller (reference 1).
    2. Connect a “USB” cable from the “USB-A” or “USB-C” port at the back of the ClickShare to the external peripherals (reference 2).

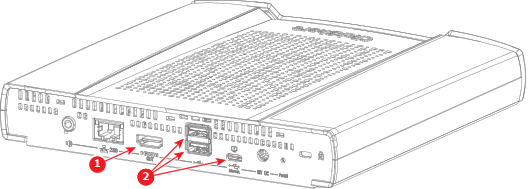

    Image 4–10 Locations of the back side connections
    1
    Connection for the room controller
    2
    Connection options for the peripherals

  2. Connect a “USB-A to USB-C” cable from the “USB-C” port at the front of the ClickShare to the “USB-A” of the room pc (reference 3).

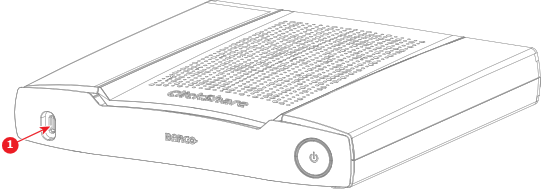

    Image 4–11 Locations of the front side connections
    1
    Connection for the room pc
  3. Enable modular room in the ClickShare configurator. For more information, see “Peripheral switching”
