4.2.13 Retain Base Unit settings

About retaining settings

Retain settings and configurations of a Base Unit(s) that have not been connected to XMS Cloud for an extended period of time. This feature will keep the local settings of the Base Unit(s) when turning on and not be overwritten by XMS Cloud settings.

Note: Retaining cannot be undone!
How to retain the settings

  1. Select one or more devices (reference 1).

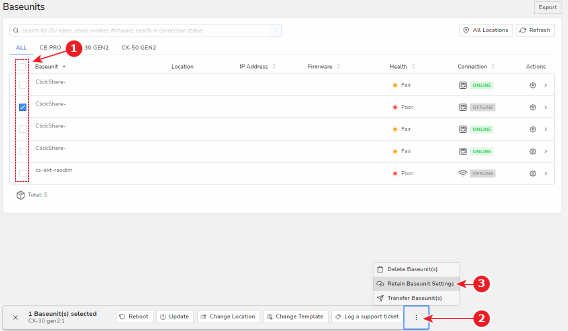

    Image 4–15

    A popup will appear on the bottom, mentioning the number of Base Unit devices that are selected.

  2. In the popup area, click on the settings icon with 3 dots (reference 2).

    Extra options will appear, including the option to retain the Base Unit settings.

  3. Click on “Retain Base Unit settings” (reference 3).

    Image 4–16

    A dialog box will be prompted, requiring confirmation to continue.

  4. Click on the blue button “Retain Base Unit settings” to confirm.

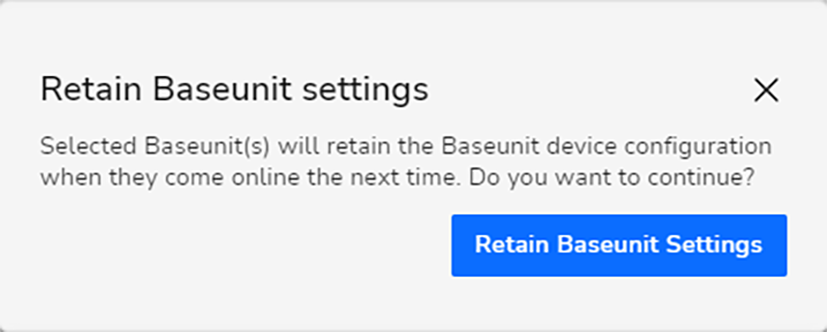

    Image 4–17

    The Icon next to the “connection status” will be marked with the symbol for settings retention.
