2.2 Pairing the Button(s)

About the Button

Button(s) must be paired with a Base Unit before they will work. An unpaired Button will not be able to share content nor connect to ClickShare.

Tip: It is not possible to pair a Button with multiple Base Units.

Pairing a Button to a different Base Unit will unpair the Button from its previously linked Base Unit.

How to pair
  1. Ensure the Base Unit is powered on.

  2. Connect the Button to the “USB-C” port of the Base Unit.

    Note: Only Buttons of generation 4.0 or 4.1 are compatible with CX-50.

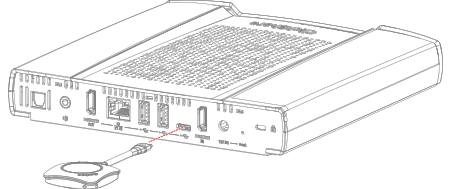

    Image 2–2 Method to pair a Button

    If a display is attached a notice “Busy pairing and updating” will appear at the bottom of the splash screen.

  3. Wait until the circle of the Button turns solid green

    If a display is attached a notice “Finished pairing and updating Button.” will appear at the bottom of the screen.

  4. Unplug the Button from the Base Unit.

    The Button is now ready to be used!
