Casting or sharing the screen of the mobile device can be done by tapping the share button in the middle of the screen.

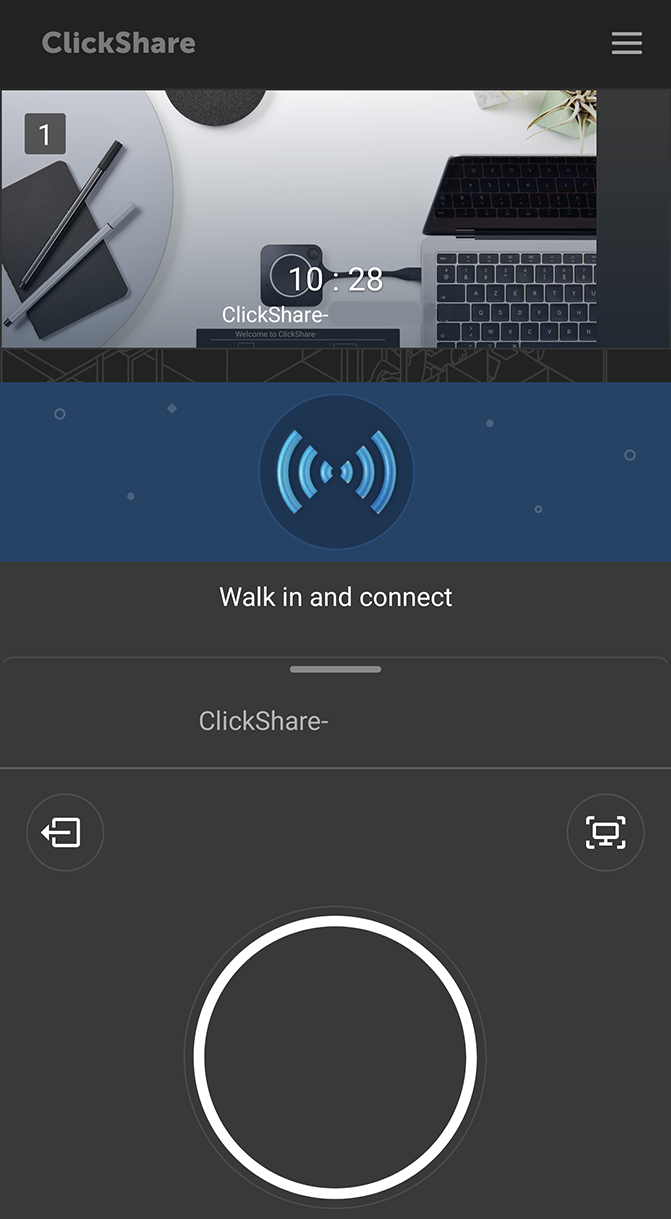

Image 3–21Example of the share screen on android
While sharing the full currently active screen on the mobile phone will be shared in real-time.It is not possible to share specific screens nor applications, as what is seen on the mobile device, will be shown on the screen.

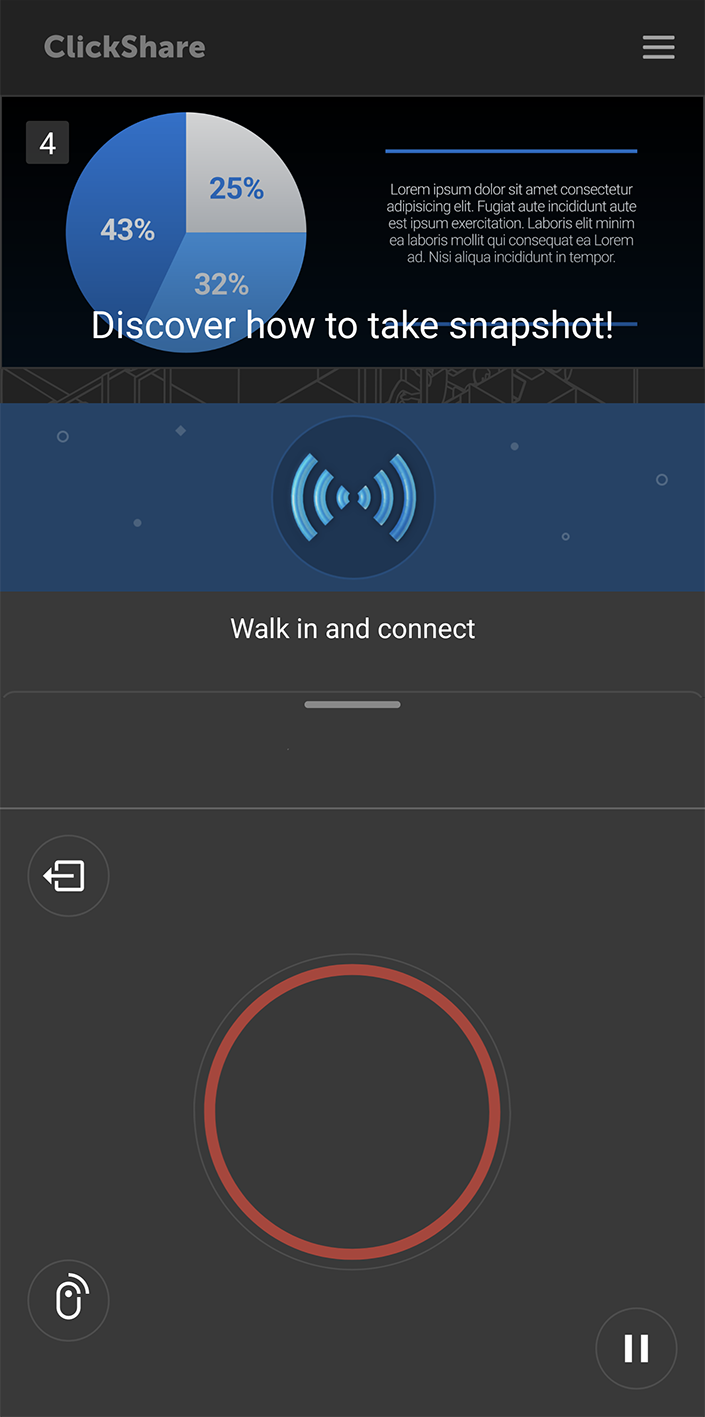

Image 3–22Example of screen that is being shared on android
Additional features
There are three additional features available while sharing on a mobile device:

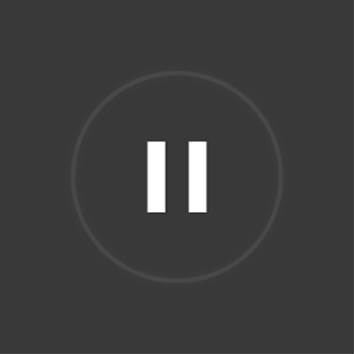

Pause the sharing by tapping on the pause button in the bottom right corner, near the share button

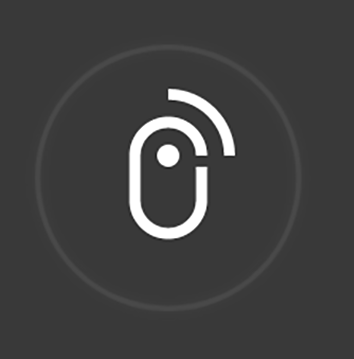

Control the screen or share with a clicker by tapping on the clicker icon at the bottom right corner, near the share button

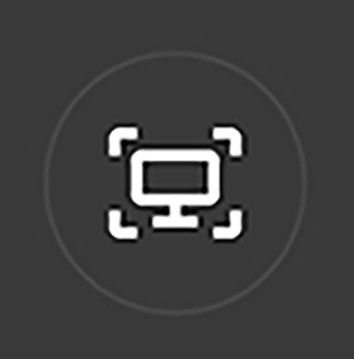

Take screenshots or preview of what is being displayed on the meeting room monitor(s) by taping on the screenshot icon in the upper right corner, near the share button
Image 3–23Example of the pause icon on androidImage 3–24Example of the pause icon on androidImage 3–25Example of the screenshot icon on android
When taking a screenshot, a new window will be displayed. This window previews what will be screenshot. There are multiple options on what can be done with the taken screenshot:
Share the screenshot over wireless connections.
Save the screenshot locally.
Delete the screenshot when it is no longer needed.

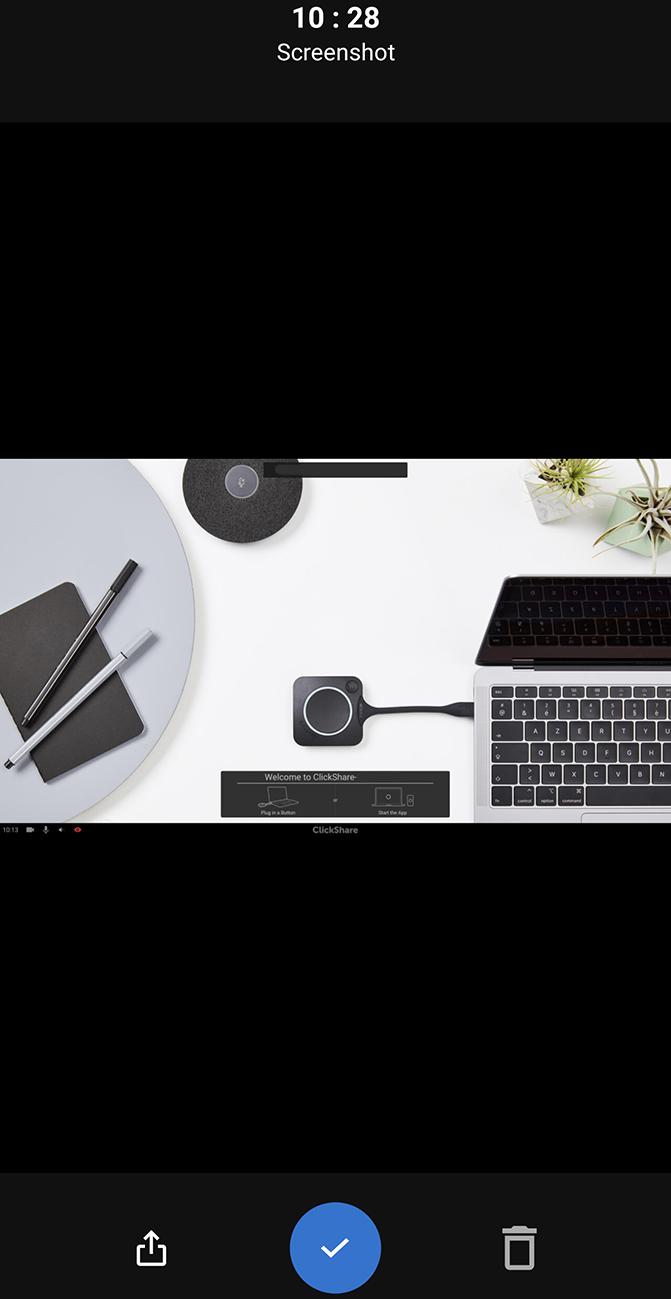

Image 3–26Example of the screenshot screen on android with icons in order
