11.4 Quick setup via Direct access

Quick source selection

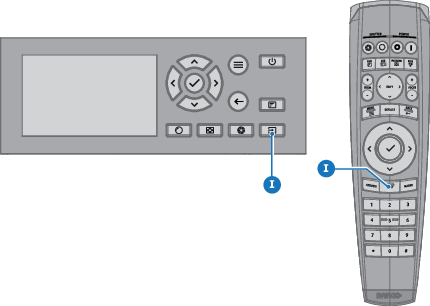

  1. Press the Input button on the remote control or local keypad.

    Image 11–2

    The Source selection menu opens on the LCD display.

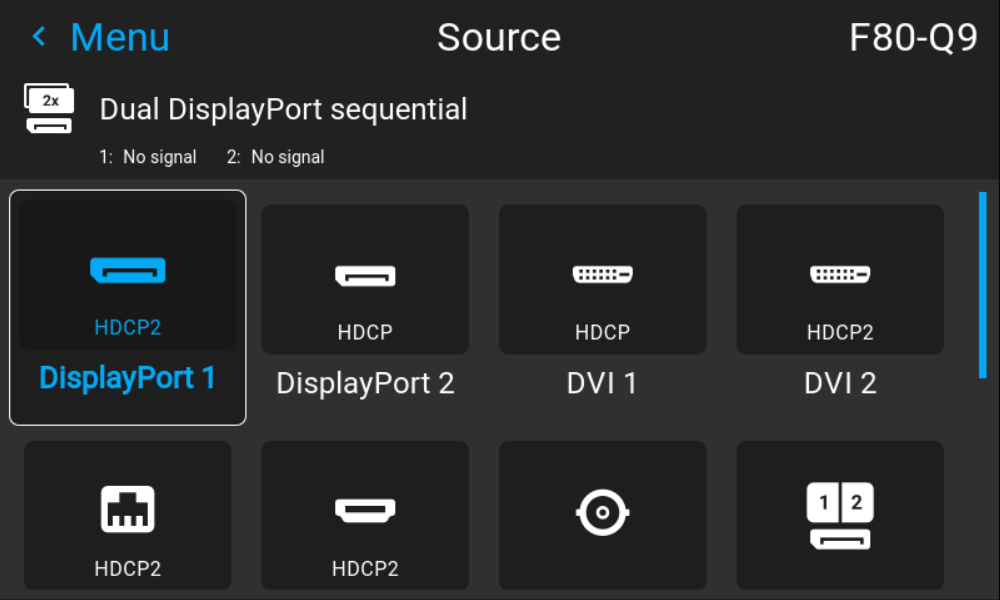

    Image 11–3 Example of the input selection menu
  2. Use the arrow keys to select the desired source.
Quick test pattern selection

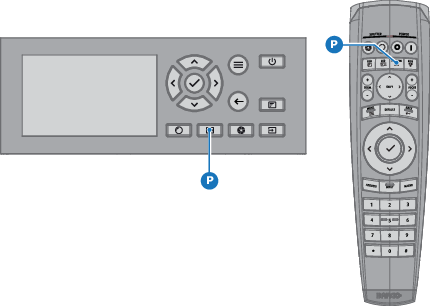

  1. Press the Test pattern button on the remote control or local keypad.

    Image 11–4

    The Test pattern menu opens on the LCD display.

  2. Use the arrow keys to select the desired test pattern.
