Cloned image with full RGB input

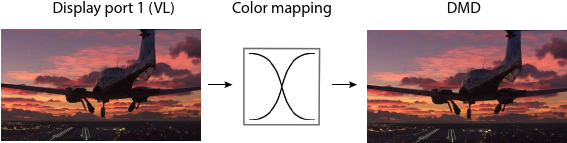

In this setup the image is rendered for visible light. It has full RGB information. In this setup there is also requested to take the red color component on the input for the IR channel and fully saturate the DMD with this component.
To achieve this result, use the following settings:
| Property | Value |
| image.connector.displayport1.colorcomponent.red | RED_IN |
| image.connector.displayport1.colorcomponent.green | GREEN_IN |
| image.connector.displayport1.colorcomponent.blue | BLUE_IN |
| image.connector.displayport2.colorcomponent.red | RED_IN |
| image.connector.displayport2.colorcomponent.green | RED_IN |
| image.connector.displayport2.colorcomponent.blue | RED_IN |
