7.3 LCD touch panel

Functionality

The LCD touch panel has two main functions:

Showing the menus, adjustment information and if enabled a mirror of the OSD (On Screen Display).
Information regarding the status of the projector:
- Projector status
- Network address
- Active source
- Current firmware version
- Operation Data
- Active functions (Enabled Functions).

Toggle between the two main function by using the Menu button on the local keypad, or on the remote control unit.

The LCD touch panel will fade out 30 seconds after the last key operation.

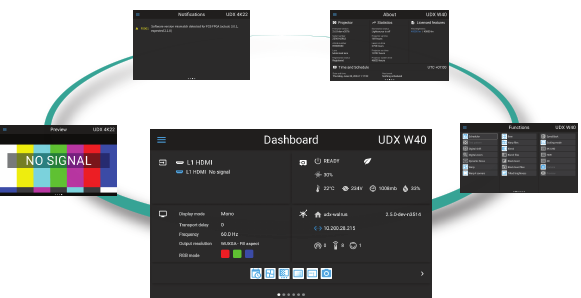

Image 7–2 Example of the Pulse OSD user interface

Note: Refer to the Pulse OSD user guide for detailed guidance on all software features of the projector.

Navigation

Use the arrow keys on the local keypad or on the remote control unit to navigate through the menus on the LCD touch panel.

In addition to the remote control unit and the local keypad, it is also possible to navigate in the menus with the touch functionality in the LCD panel:

Press the icons to select the functions.
Select switches to toggle.
Select and drag sliders to adjust slider value.

Note: The LCD menus can occasionally be slightly different in layout compared with the OSD menu, due to a more optimal layout regarding to the touch functionality of the LCD.
