Cloned inputs with only green content for IR

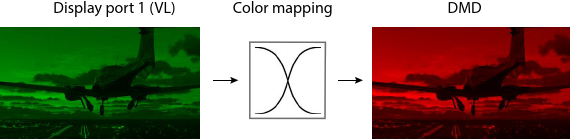

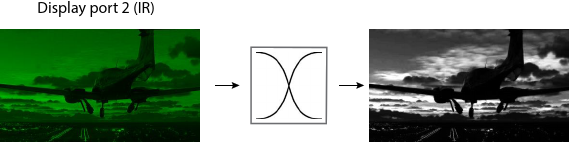

In this setup, the input is a fully saturated green and white image, well suited for the IR channel. In this setup, a portion of the green image is extracted and applied to the red channel for visible light also. Note that the power of the visible light source must be dimmed to achieve the desired effect.
| Property | Value |
| image.connector.displayport1.colorcomponent.red | GREEN_IN |
| image.connector.displayport1.colorcomponent.green | OFF |
| image.connector.displayport1.colorcomponent.blue | OFF |
| image.connector.displayport2.colorcomponent.red | GREEN_IN |
| image.connector.displayport2.colorcomponent.green | GREEN_IN |
| image.connector.displayport2.colorcomponent.blue | GREEN_IN |
