Pointing to the reflective screen or IR sensors

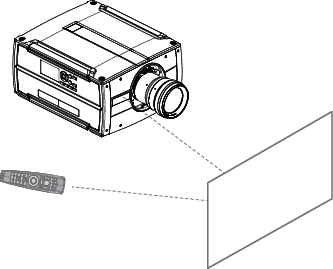

Switch on the RCU and point the front of the RCU to the reflective screen surface or point directly to one of the projector IR sensors. Make sure you are within the effective operating distance (30 m, 100 ft in a straight line).

The RCU will not function properly if strong light strikes the IR sensor window or if there are obstacles between the RCU and the IR receiver.

The RCU can also hard-wired been used. See chapter “Using the mini-jack connector of the RCU”.
