7.1 Local keypad functions

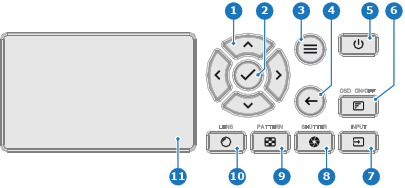

Local keypad overview
Image 7–1
1
Navigation
2
Confirmation
3
Menu enter/exit
4
Menu back
5
Power On/Off
6
OSD On/Off
7
Input selection
8
Shutter open/close
9
Test patterns
10
Lens menu
11
LCD touch panel
Functionality

The local keypad gives direct access to several functions, in addition, access to the Pulse menu system.

The local keypad has a backlight that can be switched on and off manually. By default the light turns off after 5 minutes.

Note: Refer to the Pulse OSD user guide for detailed guidance on all software features of the projector.
Tip: The Pulse software has regular new releases due to continuous improvements. Hence, the Pulse OSD user guide is subject to updates. Download the latest version of the user guide from the Barco website using following link: https://www.barco.com/support.
