9.1 Pulse RCU functions
Functions

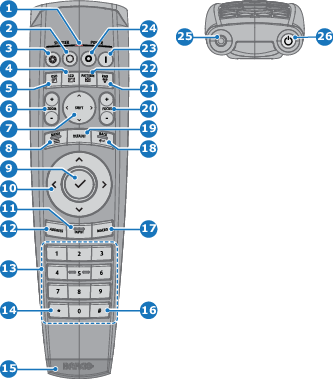

Image 9–1 - 1
- Button pressed indicator
- 2
- Shutter open
- 3
- Shutter close
- 4
- LCD/Touch panel on / off
- 5
- Projector OSD on / off
- 6
- Lens zoom
- 7
- Lens shift
- 8
- Menu open / close
- 9
- Menu selection, OK button
- 10
- Menu navigation
- 11
- Input selection
- 12
- Address button
- 13
- Numeric buttons
- 14
- Backspace (while entering values)
- 15
- XLR connector
- 16
- Decimal mark (while entering values)
- 17
- Macro button (Not in use)
- 18
- Menu back
- 19
- Default value button
- 20
- Lens focus
- 21
- RGB filter
- 22
- Test patterns
- 23
- Power on
- 24
- Power off
- 25
- 3.5 mm jack
- 26
- RCU on / off
