9.8 Pulse RCU silicone protection sleeve (optional)

Introduction

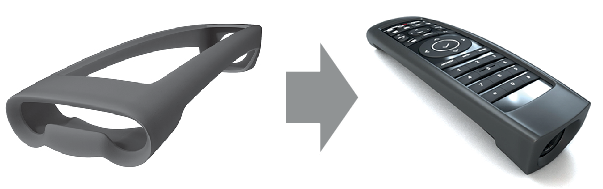

Barco offers a silicone form fitting protection sleeve for the Pulse RCU. The silicone material keeps it comfortably, non-slip and soft to the touch. All buttons and openings remain accessible. The only thing that needs to be removed is the XLR cover.

Required tools

Scissors or knife cutter

How to install

  1. Remove the XLR cover by pulling it backwards.

    Image 9–8
    Image 9–9
  2. Pull out or cut off the XLR cover. Use scissors or a knife cutter if necessary.

  3. Place back side (XLR side) of the RCU into the sleeve and pull the other side of the sleeve over the front side of the RCU.

    Image 9–10
