Supported projector orientations

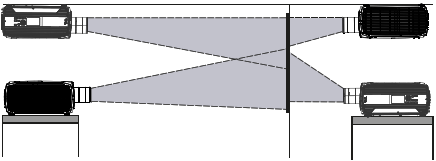

The projector can be installed on a table or upside down on the ceiling and this in a front projection or rear projection configuration. Depending on the physical configuration of the projector the projected image has to be rotated and/or mirrored as well. The projected image can be adapted via the menu Installation >> Position >> Orientation. Possible orientations are:

1. Front / Table (F/T): Projected image will not be flipped or mirrored.
2. Front / Ceiling (F/C): Projected image will be flipped horizontally (left side switches to the right side).
3. Rear / Table (R/T): Projected image will be flipped vertically (top side switches to the bottom side).
4. Rear / Ceiling (R/C): Projected image will be flipped both vertically and horizontally.
5. Auto Front: The tilt sensor will detect if the projector is desktop or ceiling mounted and will project a readable image accordingly.
6. Auto rear: The image will be flipped horizontally. The tilt sensor will detect if the projector is desktop or ceiling mounted and will project a readable image accordingly.
